As a leading supplier of Shipbuilding Gantry Cranes, I am often asked about the various components and their functions within these massive and crucial pieces of equipment. One such component that plays a vital role in the safe and efficient operation of a Shipbuilding Gantry Crane is the counterweight. In this blog post, I will delve into the functions of the counterweight in a Shipbuilding Gantry Crane and explain why it is an indispensable part of the crane's design.
Understanding the Basics of a Shipbuilding Gantry Crane
Before we discuss the role of the counterweight, let's first understand the basic structure and operation of a Shipbuilding Gantry Crane. A Shipbuilding Gantry Crane is a large, heavy - duty crane used in shipyards for lifting and moving heavy ship components during the shipbuilding process. It typically consists of a bridge structure that spans across the work area, supported by two or more legs that run on rails. The crane is equipped with a hoisting mechanism that can lift heavy loads vertically and a trolley that can move the load horizontally along the bridge.
The Primary Function of the Counterweight
The main function of the counterweight in a Shipbuilding Gantry Crane is to provide stability and balance to the crane. When the crane is lifting a heavy load, it creates a significant amount of torque and imbalance. Without a counterweight, the crane could tip over, which would not only cause damage to the crane and the load but also pose a serious safety risk to the operators and the surrounding environment.
The counterweight is strategically placed on the opposite side of the crane from the load. By adding mass to this side, it counteracts the moment created by the load. This ensures that the center of gravity of the crane remains within a safe and stable range, even when the crane is lifting its maximum rated load.
Ensuring Structural Integrity
In addition to providing stability, the counterweight also helps to ensure the structural integrity of the crane. The large forces generated during the lifting process can put a tremendous amount of stress on the crane's structure. The counterweight helps to distribute these forces more evenly across the crane, reducing the risk of structural failure.
For example, when the crane is lifting a load at the end of its boom, the counterweight helps to prevent excessive bending and shearing forces on the boom and other structural components. This extends the lifespan of the crane and reduces the need for frequent maintenance and repairs.
Enhancing Lifting Capacity
Another important function of the counterweight is to enhance the lifting capacity of the crane. By providing balance and stability, the counterweight allows the crane to lift heavier loads than it would be able to without it. This is crucial in shipbuilding, where large and heavy components such as hull sections, engines, and superstructures need to be lifted and moved.
For instance, our MH Type Electric Hoist Gantry Crane is designed with a carefully calculated counterweight system that enables it to lift heavy loads with ease. The counterweight is sized and positioned to optimize the crane's lifting performance, allowing shipyards to increase their productivity and efficiency.
Different Types of Counterweights
There are different types of counterweights used in Shipbuilding Gantry Cranes, depending on the design and requirements of the crane. Some counterweights are fixed, meaning they are permanently attached to the crane. These are typically used in smaller cranes or in situations where the lifting requirements are relatively consistent.
On the other hand, some cranes use adjustable counterweights. These can be adjusted in size or position depending on the load being lifted. Adjustable counterweights offer greater flexibility and are often used in larger cranes or in situations where the crane needs to lift a wide range of loads.

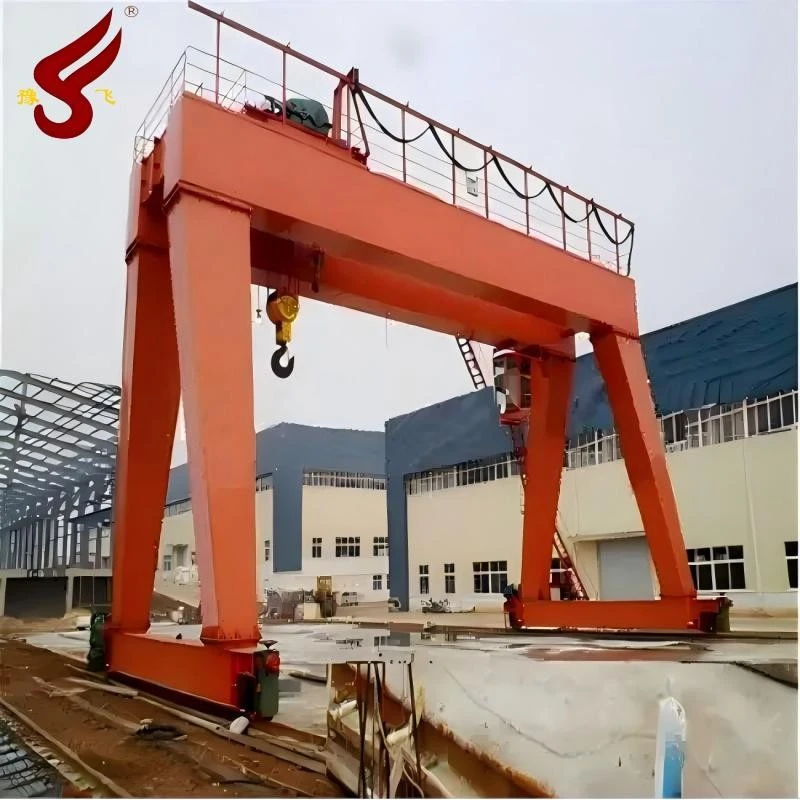

Our MG Type Double Girder Gantry Crane is equipped with an advanced adjustable counterweight system. This allows the operators to fine - tune the counterweight according to the specific lifting task, ensuring optimal performance and safety.
Safety Considerations
The counterweight is a critical safety feature in a Shipbuilding Gantry Crane. Any malfunction or improper use of the counterweight can have serious consequences. For example, if the counterweight is not properly installed or maintained, it could shift or fall off during the lifting process, which would immediately compromise the stability of the crane.
Regular inspections and maintenance of the counterweight are essential to ensure its proper functioning. This includes checking for any signs of damage, wear, or corrosion, and ensuring that the counterweight is securely attached to the crane.
Impact on Crane Operation
The counterweight also has an impact on the operation of the crane. The amount of counterweight required depends on the size and weight of the load, as well as the configuration of the crane. Operators need to be aware of these factors and make the necessary adjustments to the counterweight before each lift.
This requires a high level of skill and training. Our company provides comprehensive training programs for crane operators to ensure that they understand the importance of the counterweight and how to operate the crane safely and efficiently.
Specialized Applications
In some cases, Shipbuilding Gantry Cranes are used in specialized applications, such as in hydroelectric power stations. Our SDMQ Type Hydroelectric Power Station Gantry Crane is designed to meet the unique requirements of these applications. The counterweight in this type of crane is carefully designed to provide the necessary stability and balance in a confined and often challenging environment.
Conclusion
In conclusion, the counterweight in a Shipbuilding Gantry Crane is a crucial component that serves multiple functions. It provides stability and balance, ensures structural integrity, enhances lifting capacity, and plays a vital role in safety. As a supplier of Shipbuilding Gantry Cranes, we understand the importance of a well - designed counterweight system and strive to provide our customers with cranes that are safe, reliable, and efficient.
If you are in the market for a Shipbuilding Gantry Crane or have any questions about our products, we encourage you to contact us for a detailed discussion. Our team of experts is ready to assist you in finding the right crane solution for your specific needs.
References
- American Society of Mechanical Engineers (ASME). "Safety Standard for Overhead and Gantry Cranes."
- International Organization for Standardization (ISO). "Cranes - General Design - Part 1: General Principles and Requirements."
