Electric Hoist

Your Professional Electric Hoist Supplier

Are you looking for a reliable electric hoist for your workshop, warehouse, or production line? Yufei Group is a professional electric hoist manufacturer in China with a complete in-house production line and export experience covering more than 20 countries. Our electric wire rope hoist series include: CD1/MD1 electric hoists, European-style electric hoists, low headroom electric hoists, explosion-proof electric hoists, and metallurgical electric hoists.

Send your requirements now to get a customized recommendation and a fast quotation.

What is an Electric Hoist?

An electric hoist is a compact integrated lifting device that uses an electric motor to drive a gear transmission system, rotating a wire rope drum to wind or unwind the wire rope, thereby raising and lowering loads. Its core components include the electric hoist motor, reducer, braking system, wire rope drum, rope guide, and hook. The electric hoist features a modular design that saves space. Standard models are equipped with limit switches and overload protection, and support linear track operation and fixed installation.

Wire rope electric hoists are suitable for high-frequency lifting of light and small loads in indoor/outdoor environments. They are usually installed on single-girder cranes, overhead bridge cranes, gantry cranes, and jib cranes, and are commonly used for lifting work in warehouses, factory production lines, foundries, or explosive hazardous areas.

Electric Wire Rope Hoist Series Comparison

Use the table below to filter the right hoist by capacity, height, speed, working duty, and application. Click any series name to open a detailed page for full specifications.

Model	Lifting Capacity	Lifting Height	Lifting Speed	Travel Speed	Duty Class	Typical Applications

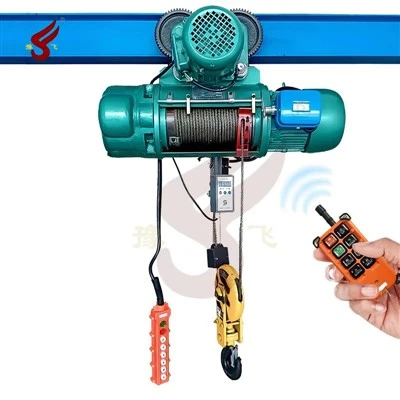

CD1/MD1 wire rope electric hoist	0.25–20 t	6–30 m	8 m/min (CD single speed) 0.8/8 m/min (MD dual speed)	20 m/min	M3/M4	General factories, warehouses, mines, ports; MD1 for precision assembly and mold handling
Explosion-proof electric hoist (HB type)	0.5–16 t	6–30 m	8/0.8 m/min	10/20 m/min	M3/M4	Refineries, chemical plants, paint factories, gas stations, and other flammable and explosive locations
Low headroom electric hoist	2–20 t	6–18 m	5/0.8 m/min	5/20 m/min	M5	Low headroom factories, warehouses; automotive assembly and logistics
Metallurgical electric hoist	2–10 t	9–27 m	8 m/min	20 m/min	M5/M6	Foundries, steel mills, casting workshops — molten metal, ladles
European-style electric hoist	1–20 t (single girder) 5–80 t (double girder)	6–30 m	0–5 m/min (VFD control)	0–20 m/min (VFD control)	M5/M6	Precision manufacturing, machining, automotive, aerospace, food & pharmaceutical, paper & chemical

How to Choose the Right Electric Hoist

Choosing the right electric hoist protects your personnel, equipment, and production schedule. Follow these eight steps:

1. Define the load

Determine the maximum weight to be lifted (SWL) and add a safety margin for slings, grabs, and dynamic loads.

2. Measure lifting height & headroom

Confirm the required hoisting height and the available distance from track to floor — this determines whether a standard or low headroom type is needed.

3. Determine working duty

Estimate lifting frequency and intensity, then match the working duty class (M3, M5, M6 / FEM 2m or 3m).

4. Select speed & control

Choose single speed, dual speed, or VFD stepless control; pendant, wireless remote, or cabin operation.

5. Check power supply

Standard is three-phase 380 V / 50 Hz; 220 V, 415 V, 60 Hz, and other voltages are customizable.

6. Assess the environment

Explosion-hazardous zones require an explosion-proof hoist; high-temperature sites require a metallurgical hoist; low-ceiling sites require a low headroom hoist or a European-style hoist.

7. Choose the installation

Trolley-mounted for overhead, gantry, or jib cranes; or fixed-mounted as a winch.

8. Verify certification & after-sales

Check ISO certification, FEM/DIN compliance, spare parts supply, warranty, and technical support.

Send your electric hoist parameters and site conditions, and our engineers will assist you through the entire selection process.

Electric Hoist Applications by Industry

Electric hoists are the workhorse of material handling across industries. Use the table below to match the right hoist type to your application:

Industry	Application Scenario	Recommended Hoist Type
Manufacturing&assembly workshops	Workpiece feeding, assembly line transfer, machine tool maintenance	CD1/MD1, European-style
Warehousing & logistics	Loading/unloading, high-shelf stacking, order picking support	CD1/MD1, European-style, low headroom
Automotive plants	Mold change, body panels and other components handling	Low headroom, European-style
Foundries & steel mills	Molten metal, ladles, and hot castings lifting	Metallurgical Hoist
Chemical, oil & gas, hazardous sites	Lifting in combustible gas / explosive dust zones	Explosion-proof (HB type)
Ports, cargo yards & mines	Heavy cargo handling and gantry crane operation	CD1/MD1 heavy models, European-style
Low-rise / renovated plants	Lifting close to the roof under limited headroom	Low headroom, European-style

Customization & OEM Service

Yufei Crane supports OEM and private-label production for crane brands and distributors worldwide. We customize lifting capacity, hoisting height, lifting speed, working duty, power supply voltage, control mode, protection level, and paint color to your requirements — your logo, brand color, and nameplate can be applied on request.

Tell us your target market and working conditions, and our engineering team will adapt the hoist design, technical documentation, and markings accordingly. For packing, shipping, payment, and quotation details, see the FAQ section below.

Why Choose Yufei Electric Hoists?

1. Production Equipment

The company owns more than 200 general-purpose machines and over 330 welding machines, including more than 30 high-precision machines such as microcomputer-controlled machining centers, CNC automatic cutters, automatic welding machines and large turning fixtures. A complete technical support system, strict production management, standardized process flows and advanced testing methods ensure product quality.

2. Service

Yufei Group provides professional equipment selection, parameter configuration and working-condition matching guidance, tailoring solutions to customer needs to ensure the most suitable solution; we provide 24/7 technical support and troubleshooting to ensure quick replacement of core components such as hooks and electrical systems.

3. Certifications

Yufei-brand cranes are certified to ISO9001 (quality management), ISO14001 (environmental management) and ISO45001 (occupational health and safety management), and hold the Special Equipment Manufacturing License issued by the national quality inspection administration.

4. Market

Products sell well in over 30 provinces, municipalities and autonomous regions across China, and are exported to more than 20 countries and regions, including India, Singapore, Vietnam, the Congo, South Africa, Russia, Spain, South Korea and Japan.

Our Certificate

Electric Hoist FAQ

What is an electric wire rope hoist?

An electric wire rope hoist is a motor-driven lifting device that winds or unwinds a steel wire rope on a drum to raise and lower loads. Core components include the electric motor, gear reducer, braking system, wire rope drum, rope guide, limit switches, and hook block. It is widely used in factories, warehouses, construction sites, mines, and ports to make lifting safer and more efficient.

What lifting capacity do I need for my application?

Start from the maximum weight to be lifted (SWL) and add a safety margin for slings, grabs, and dynamic load. Yufei electric wire rope hoists cover 0.25 t to 80 t across five series. Send us your load, hoisting height, headroom, and site conditions and our engineers will recommend the exact model with a quotation.

What do working duty M5/M6 or FEM 2m/3m mean?

Working duty class reflects the intensity and frequency of use. M3 suits light intermittent duty; M5/M6 (FEM 2m/3m) suit heavier, more frequent operation. Tell us your duty cycle and we will select the correct class for your hoist.

Can you customize voltage, lifting height, and control?

Yes. The main customization options are lifting capacity, hoisting height, lifting and travel speed, working voltage (110 V–690 V, 50/60 Hz), control mode, and paint color. Full details are in the Customization & OEM Service section above.

Which hoist is right for an explosion-proof area?

For zones with combustible gas or explosive dust, choose the HB type explosion-proof electric hoist. It is available with explosion-proof grades Ex d IIB T4 and Ex d IIC T4, with flame-proof motors and explosion-proof electrical components. It can run on I-beam tracks or be fixed-mounted.

What is the difference between a standard and a low headroom hoist?

A low headroom hoist positions the drum, pulley block, and lifting point directly adjacent to the travel track, minimizing the occupied space and maximizing the effective lifting height in the same building height. Choose it for low-rise factories, underground plants, and renovated buildings where headroom is strictly limited.

Do you support OEM and private label?

Yes, we do. We produce hoists under your own brand with your logo, color scheme, and technical specifications. See the Customization & OEM Service section above for the full scope, then send your requirements through the inquiry form below.

How is the hoist packed and shipped?

Finished hoists are packed in wooden cases and can be shipped by land, sea, or air to destinations worldwide.

What payment terms do you accept and how do I get a quote?

We accept T/T bank transfer, letter of credit (L/C), and PayPal. Please contact our sales team with your lifting capacity, hoisting height, speed, power supply, and application details — we reply with a quotation and technical proposal within 24 hours.

We're well-known as one of the leading electric hoist manufacturers and suppliers in China. Please feel free to buy customized electric hoist made in China here from our factory. For quotation, contact us now.
