What Is a Port crane?

    Port cranes are a general term for all types of lifting machinery specifically designed for loading and unloading operations at port terminals. As core equipment in modern logistics and global trade, their working efficiency directly determines a port's throughput capacity. Ranging from specialized container handling equipment, such as ship-to-shore cranes, to versatile multi-purpose equipment, like portal slewing cranes, they collectively form the backbone of an efficient modern port, serving as the critical hub connecting maritime transport with land-based logistics.

How to Select the Right Port Crane — 6-Step Procedure

Port crane selection follows a defined engineering sequence: first set the boundary conditions, then match the cargo-handling chain, calculate the key parameters, and finally verify against the quay structure.



Step 1 — Define the project boundary conditions

Input What to confirm
Berth conditions Water depth, berth length, berth elevation, tidal range, allowable wheel load of the quay structure
Vessel size Design vessel DWT, length overall, beam, number of holds
Cargo type Containers; bulk cargo (coal, ore, grain, cement, fertilizer); general/project cargo (unit weight, dimensions); heavy lifts
Throughput duty Annual throughput, design vessel payload, shift pattern, target efficiency (TEU/h or t/h)
Yard conditions Yard depth, stacking height, horizontal transport mode (belt conveyor / truck / AGV / straddle carrier)



Step 2 — Map the cargo-handling chain

Define the full ship–quay–yard flow first, then select equipment for each link:

Containers: ship-to-shore (STS) crane at the quay

Bulk unloading: grab ship unloader (flexible, intermittent) or continuous unloader (chain-bucket / air-blown, high efficiency)

Bulk loading: continuous ship loader (telescopic chute, fed by belt conveyor)

Yard stockpiling: stacker-reclaimer

General / multipurpose cargo: level-luffing portal crane (four-link or single-jib) with interchangeable attachments

Shipyards and waterborne heavy lifts: floating crane



Step 3 — Derive required efficiency and number of cranes

Annual throughput ÷ operating days per year ÷ shifts = required ship-to-ship handling rate.

Example: an 180,000 DWT ore vessel targeted at ≥ 1,500 t/h unloading → grab ship unloader, not a portal crane.

If one unit cannot meet the duty, specify multiple units — and account for the minimum clearance for anti-collision between rail-mounted cranes and combined wheel load.



Step 4 — Calculate the core parameters

Lifting capacity Q — must include attachment weight. Grabs, container spreaders and electromagnetic beams add their own dead weight; never size to hook load alone.

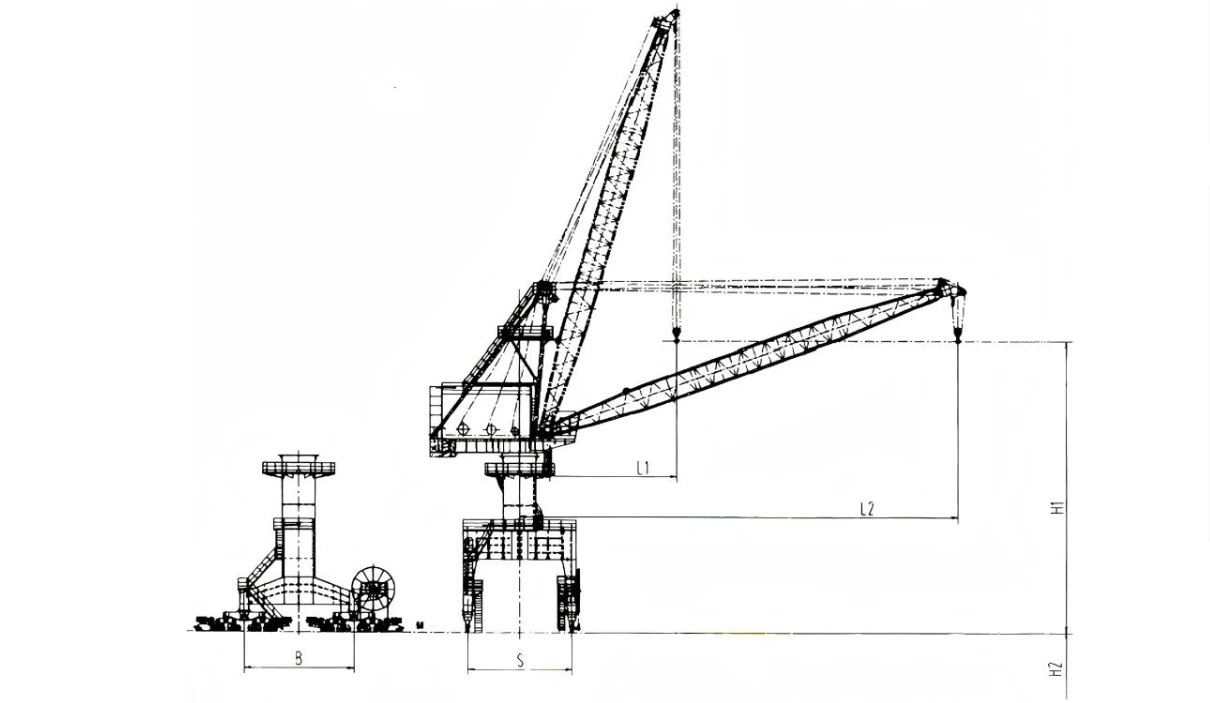

Working radius R — the maximum outreach must cover the full hatch of the design vessel; the back reach must cover the receiving point (belt conveyor hopper or yard).

Lifting height — above rail (safe clearance above the hatch coaming) + below rail (depth of grab/spreader into the hold) + tidal correction.

Working duty — ISO duty class M3–M7: portal cranes typically M5; high-throughput container/bulk main-line equipment M6–M7.

Gauge / base — the clearance required between the legs for horizontal transport (trucks or belt conveyor) determines the portal clearance.



Step 5 — Verify the quay structure and site constraints

Wheel load check — quay design load limits determine single wheel load, bogie grouping and crane count. This is the most frequent reason for redesign.

Power supply — 6–10 kV supply, cable reel or conductor rail.

Wind protection — rail clamps + anchoring devices + storm ties; coastal typhoon zones require a defined design wind level.



Step 6 — Select attachments and mechanism configuration

Attachments: hook / grab / telescopic container spreader (single, twin 20 ft) / electromagnetic beam / vacuum lifter

Drives and control: AC variable-frequency hoisting, slewing and luffing mechanisms, PLC with remote condition monitoring

Safety: overload limiter, travel limit switches, inter-crane anti-collision, anemometer, emergency braking

Quick selection guide

Scenario

First choice

Alternative

Container vessels STS ship-to-shore crane —
Bulk unloading Grab ship unloader / continuous unloader Portal crane (small ports)
Bulk loading Continuous ship loader —
Bulk yard handling Stacker-reclaimer —
General / multipurpose cargo MQ four-link portal crane / single-jib portal crane —
Shipyards, waterborne heavy lifts Floating crane Portal crane

Why Choose YuFei as Your Port Crane Manufacturer

1. Production Equipment

The company owns more than 200 general-purpose machines and over 330 welding machines, including more than 30 high-precision machines such as microcomputer-controlled machining centers, CNC automatic cutters, automatic welding machines and large turning fixtures. A complete technical support system, strict production management, standardized process flows and advanced testing methods ensure product quality.



2. Service

Yufei Group provides professional equipment selection, parameter configuration and working-condition matching guidance, tailoring solutions to customer needs to ensure the most suitable solution; we provide 24/7 technical support and troubleshooting to ensure quick replacement of core components such as hooks and electrical systems.



3. Certifications

Yufei-brand cranes are certified to ISO9001 (quality management), ISO14001 (environmental management) and ISO45001 (occupational health and safety management), and hold the Special Equipment Manufacturing License issued by the national quality inspection administration.



4. Market

Products sell well in over 30 provinces, municipalities and autonomous regions across China, and are exported to more than 20 countries and regions, including India, Singapore, Vietnam, the Congo, South Africa, Russia, Spain, South Korea and Japan.

Our Certificate

ISO 14001
ISO 9001
ISO 45001

Port Crane FAQ

Q: How do you guarantee the quality of your port cranes?

A: Yufei is one of the Top 10 crane manufacturers in China with more than 10 years of domestic and overseas experience. We use high-quality spare parts — especially electrical components — and every crane passes final inspection before shipment. Our quality, environmental and safety management systems are certified to ISO 9001, ISO 14001 and ISO 45001.

Q: Can the port cranes be customized?

A: Yes. All Yufei cranes are customized according to customer requirements. Please provide your lifting capacity, span, lifting height, outreach, cargo type and working environment so our engineers can prepare the best design for your site.

Q: What are your main markets?

A: Domestic China (about 60%), followed by Southeast Asia (15%), South Asia (6%), Northern Europe (5%), the Middle East (5%), Western Europe (4%), Central America (3%) and Africa (2%). We export to over 20 countries and regions.

Q: Do you provide installation and commissioning service?

A: Yes. Different projects receive different solutions — our engineers will discuss the installation, commissioning and training plan with you after the order is confirmed, and on-site commissioning can be arranged.

Q: What are your sales terms and payment conditions?

A: Accepted sales terms: EXW, FOB, CFR, CIF. Accepted payment currency: USD, EUR. Accepted payment types: T/T, L/C, D/P, D/A, credit card.

Q: How is the port crane shipped?

A: Small and medium cranes ship by container. Oversized cranes ship by bulk vessel or in sections by container after truncation. We always choose the transport method that minimizes your cost while keeping the crane in perfect condition.

Q: What information should I provide for a quotation?

A: Cargo type, lifting capacity, outreach (luffing radius), hoisting height, span, rail length, power supply and site conditions. The more detail you provide, the more accurate your quotation and design will be.
